From source data to a canonical network model

Page status: worked exact resistive assembly lesson, followed by source-conversion guidance.

By the end of this lesson, you will be able to assemble a small nodal matrix from named equipment, impose a voltage boundary, solve for the remaining voltages, and check the result against the original equipment. Only Ohm's law, KCL, and a two-equation linear solve are needed. All values below are exact for a fixed resistive model; this first construction has no phasor, transformer, load-control, or thermal dynamics.

Start with equipment and terminals

An ideal source fixes node s at 12 V relative to a reference terminal 0. Two series resistors connect it to a resistive load. The equipment table is the input; the array positions will be chosen afterward.

Before calculating, predict which of m and t has the higher voltage and whether the two series currents differ. Current into the load must return through the reference connection; the source supplies it. The symbol 0 identifies that connection and its chosen voltage datum in this circuit. A voltage datum alone would not create a physical grounding path.

Use node order $(s,m,t)$ and voltage vector $\mathbf U=(U_s,U_m,U_t)^{\mathsf T}$. Store branch orientation from the first terminal to the second. With the book's incidence convention (tail $-1$, head $+1$),

\[\mathbf A=\begin{bmatrix}-1&1&0\\0&-1&1\end{bmatrix},\qquad \mathbf I=-\operatorname{diag}(2,1)\mathbf A\mathbf U.\]

The minus sign matters: $\mathbf A\mathbf U$ gives head-minus-tail voltage, whereas the stored current follows tail-to-head voltage drop. Branch currents leaving nodes are $-\mathbf A^{\mathsf T}\mathbf I$.

Stamp one component at a time

A conductance $g$ between nodes $i$ and $j$ contributes $+g$ to $Y_{ii}$ and $Y_{jj}$, and $-g$ to $Y_{ij}$ and $Y_{ji}$. The load to the fixed reference adds $1/2$ to $Y_{tt}$. Thus

\[\mathbf Y =\mathbf A^{\mathsf T}\operatorname{diag}(2,1)\mathbf A +\operatorname{diag}(0,0,1/2) =\begin{bmatrix}2&-2&0\\-2&3&-1\\0&-1&3/2\end{bmatrix}\ \mathrm S.\]

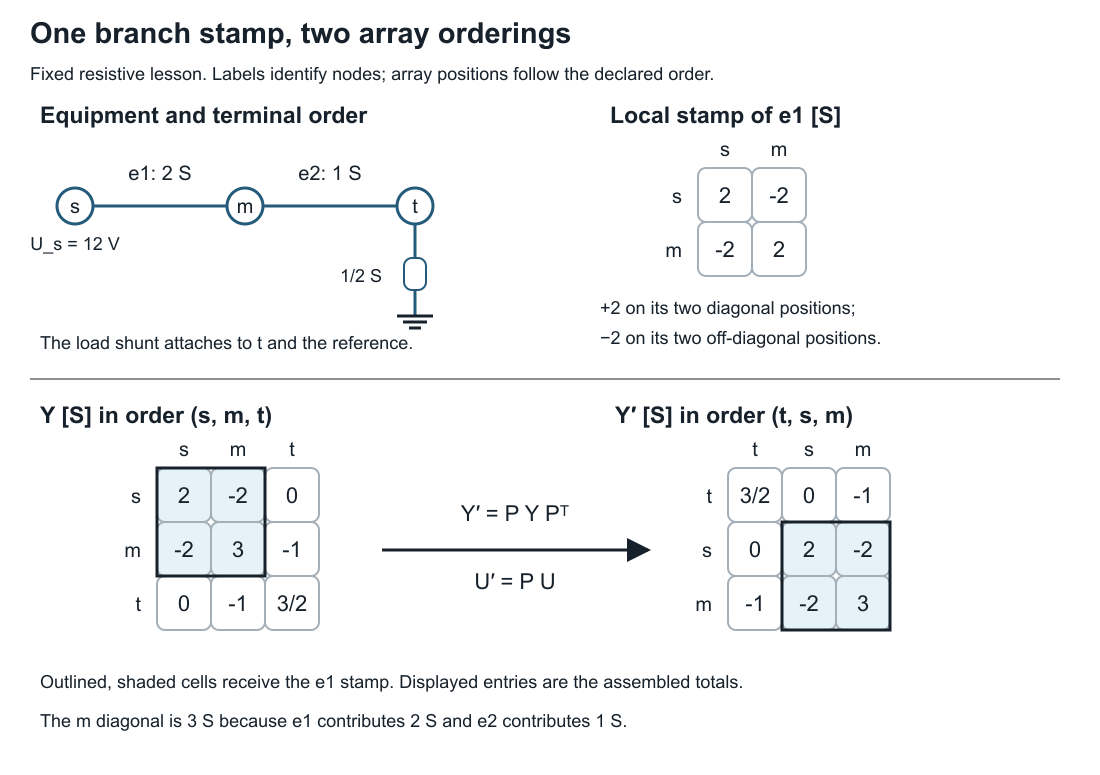

The outlined entries receive the e1 stamp; their displayed values include all contributions. In particular, the m diagonal includes both branches. The lower panels use the same permutation for equation rows and voltage coordinates, so $\mathbf Y'=\mathbf P\mathbf Y\mathbf P^{\mathsf T}$ and $\mathbf U'=\mathbf P\mathbf U$. The source boundary remains at node s.

This matrix relates passive-device currents leaving the nodes to their voltages. The ideal source is a voltage boundary with an unknown supplied current, not a finite admittance stamped into this matrix.

At m and t there is no separate injected current. Substituting $U_s=12$ gives the retained system

\[\begin{bmatrix}3&-1\\-1&3/2\end{bmatrix} \begin{bmatrix}U_m\\U_t\end{bmatrix} =\begin{bmatrix}24\\0\end{bmatrix},\qquad U_m=72/7\ \mathrm V,\quad U_t=48/7\ \mathrm V.\]

The source current follows from its row afterward. Deleting the source row without moving its voltage contribution to the right-hand side would solve a different problem.

Recover and check the equipment

Use the original terminal records, not the assembled matrix, to calculate

\[I_{e1}=2(U_s-U_m)=24/7\ \mathrm A,\quad I_{e2}=U_m-U_t=24/7\ \mathrm A,\quad I_d=U_t/2=24/7\ \mathrm A.\]

Check KCL separately at m and t. Check power using source delivery $12I_{e1}$ and resistor absorption $I_{e1}^2/2+I_{e2}^2+U_t^2/2$; both equal $288/7$ W. These are complementary checks. An aggregate power check alone does not test each node's balance, and small residuals for a wrongly assembled matrix do not validate its terminal maps.

python3 experiments/lessons/assemble_network.py
python3 experiments/lessons/assemble_network.py --check
python3 experiments/lessons/assemble_network.py --misattach-load

The first command prints the matrix, rational voltages and currents, passing source-equipment KCL, and zero power mismatch. The last command deliberately stamps the load at m instead of t. It solves its own equations, giving $U_m=U_t=48/5$ V, but fails KCL evaluated against the original equipment. The code also checks a node permutation, reversed branch orientations, an altered voltage, and a changed load. It never writes an artifact.

This verification separates stamping from equipment evaluation but shares the input conductances and laws. It can catch a mapping or solve error; it does not prove those conductances describe real equipment.

Change the construction

1. Change the load conductance to 1/4 S. Derive both voltages and currents before calling solve(load=Fraction(1, 4)) in the lesson module.
2. Store nodes in order (t,s,m). Explain how the matrix and the voltage array change while voltages attached to named nodes remain the same.
3. Remove the load. Explain the null vector of the full passive matrix and why fixing the source voltage still determines the other two voltages.
4. Replace the resistive data by fixed complex admittances. Which assembly identities survive, and which power expression requires conjugation?

Answer guidance. For the changed load, $U_t=96/11$ V, $U_m=120/11$ V, and both series currents are $24/11$ A. A node permutation acts on rows, columns, and the voltage vector consistently; it cannot change a named-node voltage. Without the load, all voltages equal 12 V after imposing the source boundary; the full matrix has common-offset gauge freedom. For complex admittances and real incidence maps the stamp still uses $A^{\mathsf T}YA$. Terminal complex power is $UI^*$. A complex voltage-coordinate map instead needs its conjugate-transpose power-dual current map; see Circuit coordinate transformations.

A satisfactory solution shows the stamp, boundary substitution, recovered currents, and source checks. A table of final voltages alone is insufficient.

From this example to source conversion

A utility export, OpenDSS deck, CIM profile, or solver dictionary can hide choices that the small table made explicit: units, terminal order, defaults, connection types, and state. The remainder of this chapter describes how to record those choices. Here canonical means the declared internal source model for this workflow; it does not claim a unique mathematical representation of every power system.

The projection contract

Let $D$ be a source document and $C$ a canonical network model. An adapter is a partial map

\[P:D\longrightarrow (C,F,\Pi),\]

where $F$ is a finding ledger and $\Pi$ is a provenance manifest. The map is partial because an input may be malformed, incomplete, or outside the supported factor library. A successful parse means only that $P$ returned a candidate model; it does not mean that every study question supported by $D$ is preserved in $C$.

The canonical model should make at least these objects explicit:

The book's preferred identifiers retain the BMOPFTools-style ownership rule: $\ell$ identifies an element, while $\ell ij$ identifies an oriented terminal attachment. A converter may reorder arrays or create virtual objects, but it must publish the map that explains the change.

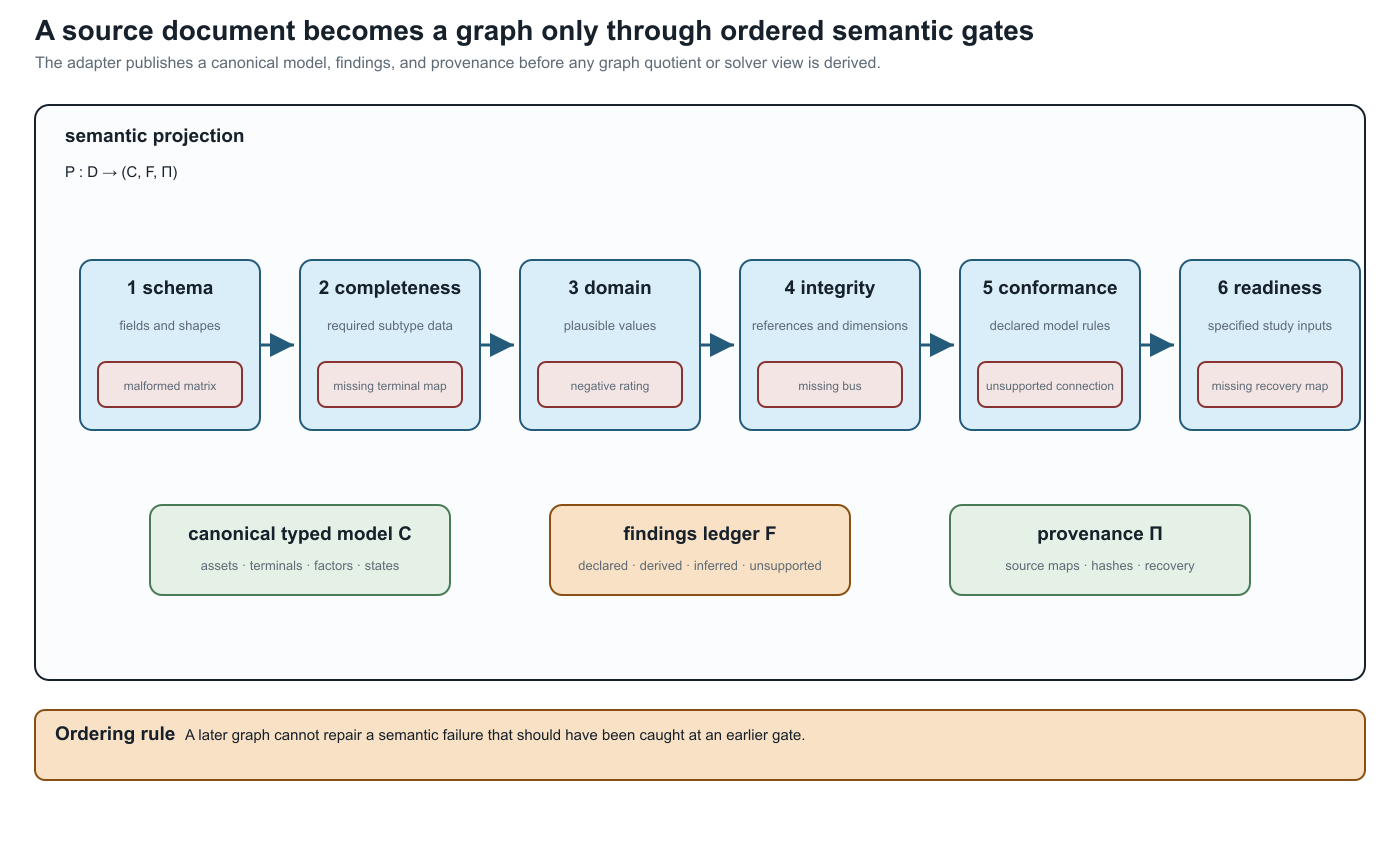

Validation gates before graph construction

The following gates are deliberately ordered. A later graph cannot repair a failure that should have been caught at an earlier semantic layer.

An implementation can reject a valid circuit outside its supported model class. Multiple compatible voltage sources are not inherently invalid; their equations and the implementation's supported source configuration matter. Missing explicit voltage bounds or an objective involving only slack injection does not alone make a mathematical problem ill posed. Equations may determine voltages, and slack injection may be a meaningful objective. Conversely, bounds do not establish feasibility, uniqueness, or stability. Readiness checks identify specified obligations; mathematical well-posedness needs a study-specific argument.

These checks should return stable finding codes and machine-readable details, not only prose warnings. A graph quotient may be mathematically valid while the input is semantically unfit for the intended decision problem.

The ordering is semantic, not cosmetic: a later graph view cannot repair a missing terminal map, an invalid domain value, or an ownerless limit that should have been rejected earlier.

Inference is not identity

Practical formats often encode meaning positionally or through defaults. An adapter may infer that terminal $4$ is a neutral, that two named objects are parallel members, or that a regulator is a transformer with a control loop. Such inferences can be useful, but recording them with provenance does not turn them into declared source facts or establish their truth. Retain the inference rule, its assumptions, and its evidence. A declared source value can also be wrong: origin and correctness are separate attributes. The canonical record should distinguish:

1. declared values copied from the source;
2. derived values computed from declared data;
3. inferred values introduced by an adapter rule; and
4. unsupported values that could not be represented.

This distinction is essential when a later transformation claims preservation. An inferred terminal permutation may be harmless for a scalar connectivity query but fatal for a conductor-current limit.

What a safe adapter publishes

For every source-to-canonical map, record:

1. source format, profile, and version;
2. stable asset and terminal identifiers;
3. units, bases, phase, neutral, earth, and grounding conventions;
4. state, scenario, and control treatment;
5. factor, rating, and objective mappings;
6. generated objects and their source parents;
7. unsupported or lossy fields;
8. validation findings and their severity; and
9. round-trip or recovery checks for the declared observations.

The practical import exercise tests these obligations on a rating sentinel. A number-preserving round trip can still change its constraint meaning; an unknown value must remain unknown.

Impedance data need one additional discipline: the canonical record should retain the full derivation context even when an adapter exports only a solver- friendly matrix. Geometry or linecode provenance, frequency, earth model, ordered conductors, series/shunt blocks, and matrix diagnostics belong to the source record; Kron, phase-to-neutral, sequence, and positive-sequence matrices are derived views with their own guards. The four-wire impedance-model ladder is the first executable example of this source-to-view contract.

Consequences for the graph views

An adapter that collapses two assets, loses a neutral, or silently grounds a terminal changes the source from which every subsequent view is built. Retain the equipment and terminal identities needed to check the derived equations; the many-graphs lesson develops the graph views.

Running-network application

The running fixture is intentionally small enough to audit. Its canonical record declares four lines, a three-winding transformer, a switch, ordered conductor sets, explicit neutral semantics, ratings, and state ownership. The generated adapter crosswalk checks those obligations against the pinned CIM/CGMES, PowerModelsDistribution, OpenDSS, and MATPOWER descriptions. That crosswalk is not an import claim: it is a checklist of what an actual adapter would have to preserve or mark unsupported.

The field-level example and this larger checklist serve different purposes: the former executes a small semantic check; the latter identifies obligations still required for a complete running-network adapter.
