BIM/BFM parallel lines: an expressiveness audit

Page status: literature-informed formulation case; the equations illustrate scope boundaries and are not a new executable certificate.

The notes by Geth and Liu provide a compact warning about expressive notation. They study BIM and BFM second-order-cone formulations for parallel lines and $\Pi$-sections with ideal transformers and shunts [26]. The case illustrates how member identities and consistency relations affect what a formulation establishes.

This is a notation-capability plate, not a new numerical certificate. It makes the scope boundary visible before the equations are interpreted as a theorem.

The branch identity is part of the variable signature

For the following displayed identities, assume fixed scalar series-only branches with no shunts or transformer taps. Consider two parallel branches $\ell i j$ and $k i j$. Their impedances are $Z_\ell$ and $Z_k$ and their series flows are $S_{\ell i j}$ and $S_{k i j}$. A BIM representation can use one bus-pair cross-product $W_{ij}=U_iU_j^*$ and write

\[S_{\ell i j}=Y_\ell^*(W_i-W_{ij}), \qquad S_{k i j}=Y_k^*(W_i-W_{ij}).\]

The shared $W_{ij}$ expresses that both members see the same endpoint voltage product. In a BFM representation, each branch may instead retain its own lifted current $L_\ell$ and $L_k$. The two variable spaces have different coordinates and different relaxation geometry. They are not equivalent merely because both are described as “the branch-flow model for the same network.”

For parallel members, the missing consistency relation can be written as

\[Z_\ell^*S_{\ell i j}=Z_k^*S_{k i j}.\]

Without it, independently chosen branch flows can satisfy the balance equations while failing to arise from one common voltage drop. Adding the relation is a formulation repair, not a graph transformation.

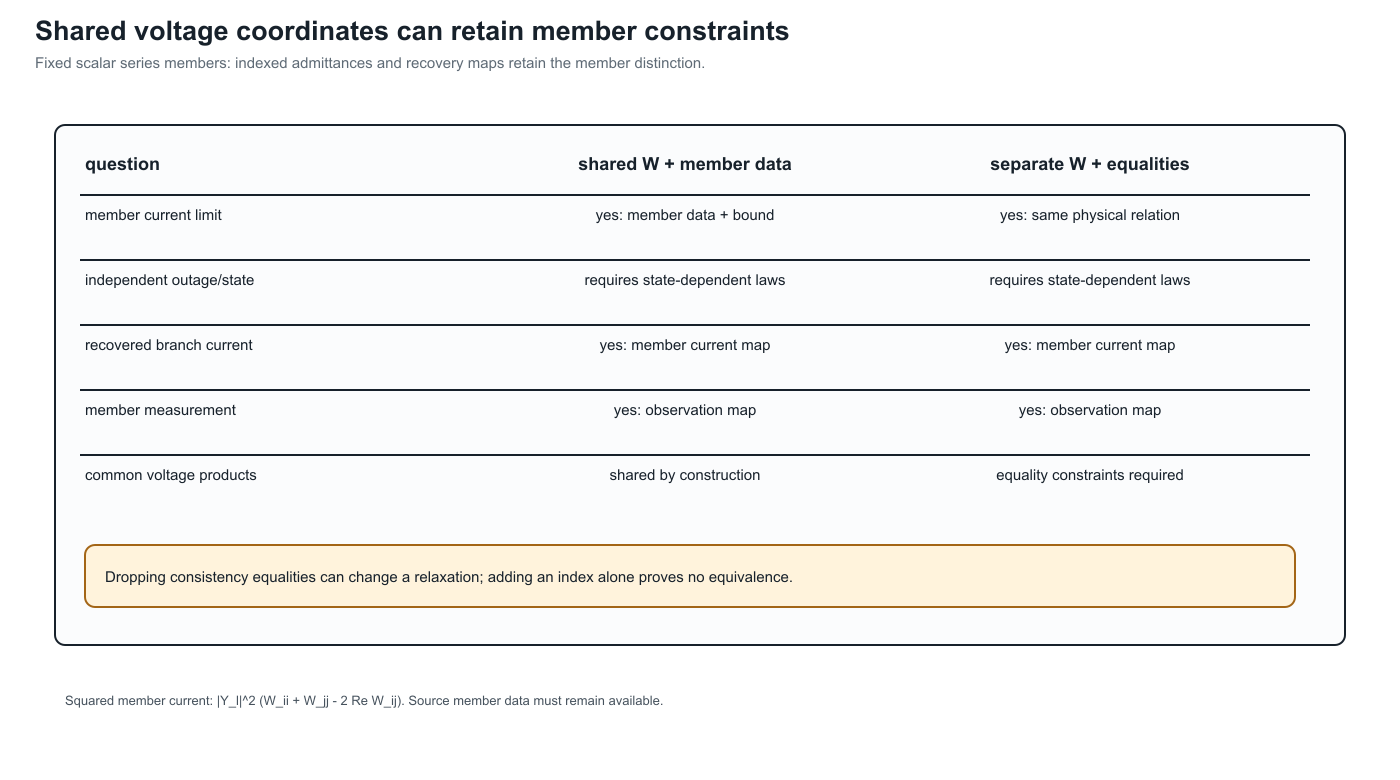

Shared voltage coordinates do not remove member-specific constraints. Writing $W_i=|U_i|^2$ and $W_j=|U_j|^2$ in the exact lifted model gives

\[|I_{\ell i j}|^2 =|Y_\ell|^2\left(W_i+W_j-2\Re(W_{ij})\right).\]

Each retained member can therefore have its own current limit using the same voltage products. Member identity must remain in the parameters, constraint indexing, and recovery relations; it need not appear on every voltage variable. The same principle extends to fixed linear terminal-current maps, with the appropriate coefficients for taps and shunts.

For switching or outages, retain the state variables and conditional member laws as well. The fixed-state identity above does not establish preservation of those decision domains.

Terminal power is not series power

For a nominal-$\Pi$ member, distinguish the series current from the current seen at each terminal:

\[I^{\mathrm{tot}}_{\ell i j} =\frac{I^s_{\ell i j}+I^{\mathrm{sh}}_{\ell i j}}{T_{\ell i j}^*}, \qquad I^{\mathrm{tot}}_{\ell j i} =I^s_{\ell j i}+I^{\mathrm{sh}}_{\ell j i}.\]

Consequently,

\[S^{\mathrm{tot}}_{\ell i j}=U_i(I^{\mathrm{tot}}_{\ell i j})^*, \qquad S^s_{\ell i j}=\frac{U_i}{T_{\ell i j}}(I^s_{\ell i j})^*.\]

An apparent-power limit placed at the terminal therefore constrains the total current, including shunt current and the ideal-transformer scaling. A limit on the series impedance current is a different observation. In a lossy branch, there is no single conserved scalar called “the flow on the edge.”

Implied current limits and relaxations

If a terminal apparent-power limit is $|S^{\mathrm{tot}}|\le S^{\max}$ and $|U_i|\ge U_i^{\min}>0$, then

\[|I^{\mathrm{tot}}_{\ell i j}| \le \frac{S^{\max}}{U_i^{\min}}.\]

This is a valid implied current bound. In the exact AC model it cannot tighten the feasible set beyond the original apparent-power limit, but in a relaxation it can bind first and strengthen the relaxation. The distinction is important: an implied constraint is not a new nameplate rating, and a relaxation proof is not automatically a physical-network proof.

Four common overclaims

The paper’s two-bus examples make these differences visible without a large network. They complement the book’s multiconductor parallel cases: the latter focus on terminal-current recovery and feasible-set preservation, while this case focuses on variable signatures, $\Pi$-section bound semantics and the boundary between physical and relaxation-level equivalence.

House notation for the book

The book will use the BMOPFTools-style convention consistently:

• $\ell i j$ is a stored oriented arc, not a claim about operating power flow;
• $\ell$ identifies the physical/model member;
• symmetric intrinsic parameters such as $Z_\ell$ carry only the member index;
• directional quantities such as $I_{\ell i j}$ and $S_{\ell i j}$ carry the full arc triple;
• total-terminal and series quantities receive distinct superscripts;
• a shared bus-pair quantity such as $W_{ij}$ is used only when the theorem declares the sharing relation explicitly.

This is an expressive-notational rule: the symbols needed to state a constraint must be represented by its variables, indexed data, constraints, and recovery relations. A physical quantity may be derived rather than an independent variable.
